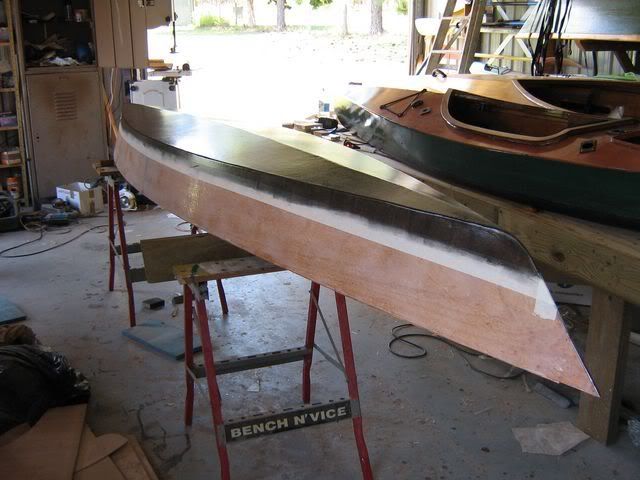

first coat of graphite is on.


While that was setting up, I started working on a little deck tube thing. Sort of like a small glove box where Robin can keep her camera or something.

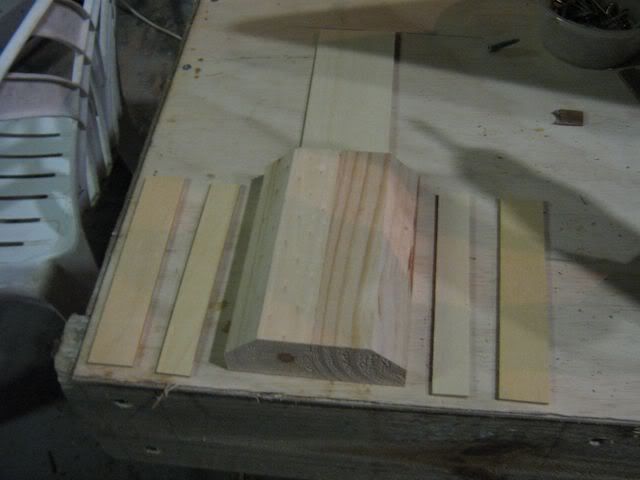

Component parts round the forming block.


Ready for external fillets.

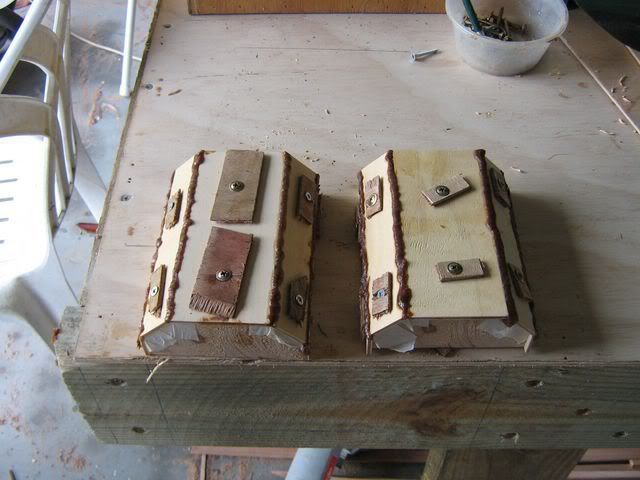

Glued up. Made one for me too. :P


I got two more coats of graphite on the bottom today and hope to flip her tomorrow and start on the internal fittings.
Regards,
Mick

JEMWATERCRAFT Swampgirl; Wadefish;Touring Pirogue;South Wind; P5 ;
Laker X 2, Sasquatch 16.5 T-V 15 Okwata 15:
Cobia 15 (under construction)
Top
Kayak Jack
Design Reviewer
Posts: 1186
Joined: Sun Jun 20, 2004 8:03 pm
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: South-central Michigan

Post by Kayak Jack »

I like your glove boxes, Mick. I've seen some boats with a short chunk of PVC pipe center-mounted up under the deck at the forward edge of the cockpit. Yours has more class.
Kayak Jack
Doing what you like is FREEDOM
Liking what you do is HAPPINESS
I spent most of my money on whiskey and women - and I'm afraid I just wasted the rest.
Top
hairymick
Design Reviewer
Posts: 1965
Joined: Wed Jan 04, 2006 8:54 am
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: Queensland, Australia
Contact:
Contact hairymick

Post by hairymick »

Why thank you Sir.
Regards,
Mick

JEMWATERCRAFT Swampgirl; Wadefish;Touring Pirogue;South Wind; P5 ;
Laker X 2, Sasquatch 16.5 T-V 15 Okwata 15:
Cobia 15 (under construction)
Top
hairymick
Design Reviewer
Posts: 1965
Joined: Wed Jan 04, 2006 8:54 am
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: Queensland, Australia
Contact:
Contact hairymick

Post by hairymick »

Getting there!

Got all my "Honey Doos" done yesterday and could spend all day, pretty much, on the boat today.

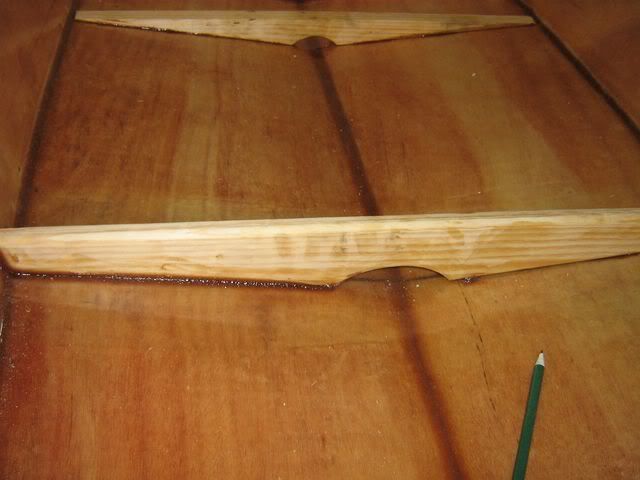

Seat supports are cut, fitted and in

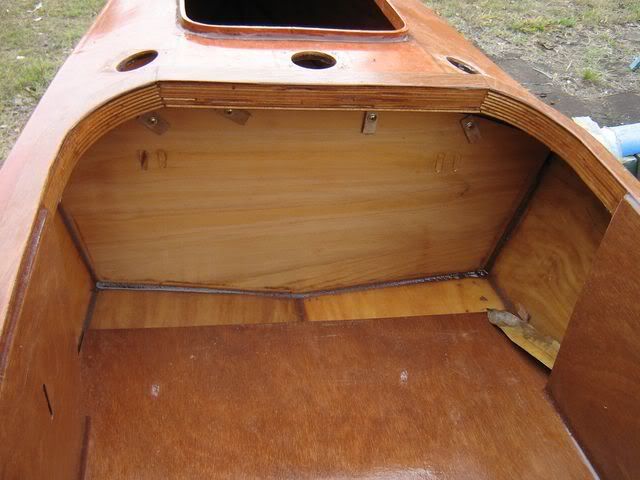

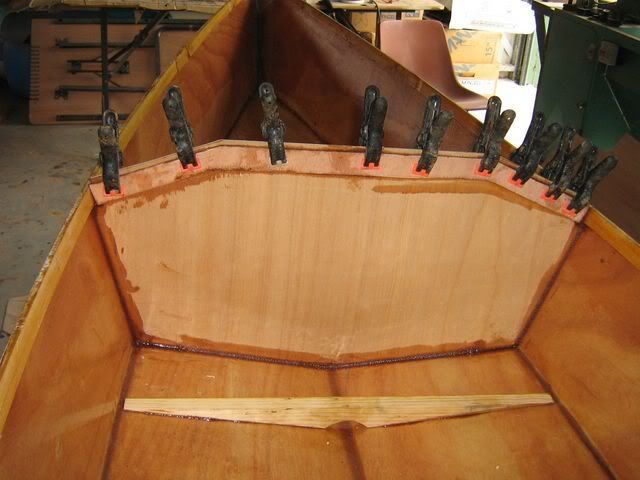

Cut and fitted a rear bulkhead, with shear clamps :P




Made one for me too :D

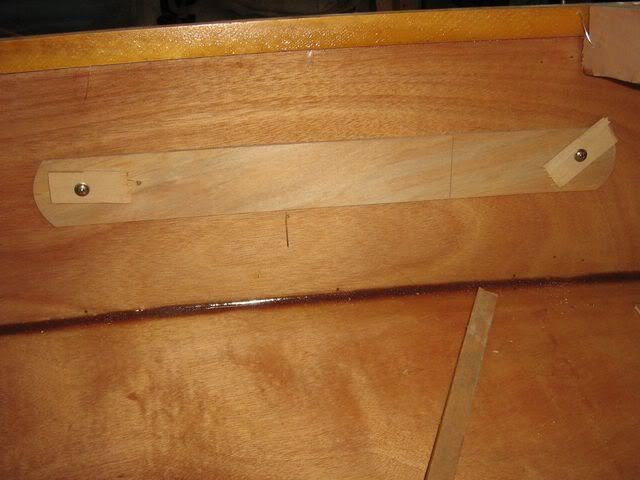

Foot brace backing plates are cut & fitted

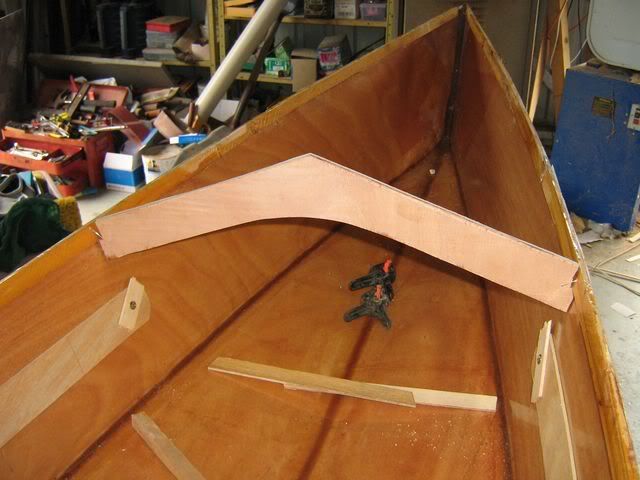

Front deck support is also in. :D

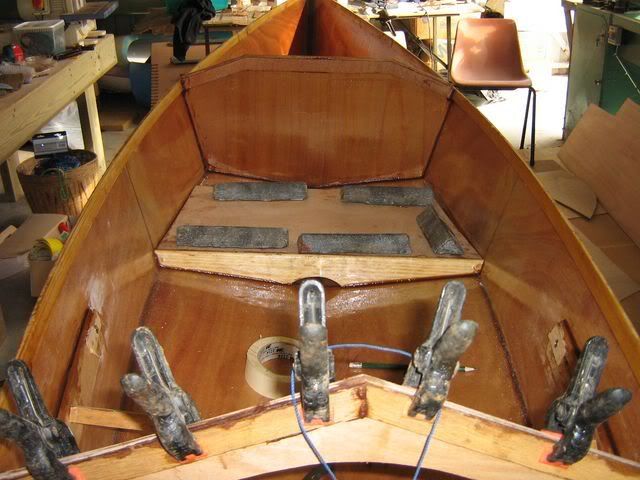

Seat is in.


Won't be any more done till after Christmas, tis beer O'clock now. :D
Regards,
Mick

JEMWATERCRAFT Swampgirl; Wadefish;Touring Pirogue;South Wind; P5 ;
Laker X 2, Sasquatch 16.5 T-V 15 Okwata 15:
Cobia 15 (under construction)
Top
Kayak Jack
Design Reviewer
Posts: 1186
Joined: Sun Jun 20, 2004 8:03 pm
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: South-central Michigan

Post by Kayak Jack »

Looking very nice, Mick. You do good work.
Kayak Jack
Doing what you like is FREEDOM
Liking what you do is HAPPINESS
I spent most of my money on whiskey and women - and I'm afraid I just wasted the rest.
Top
hairymick
Design Reviewer
Posts: 1965
Joined: Wed Jan 04, 2006 8:54 am
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: Queensland, Australia
Contact:
Contact hairymick

Post by hairymick »

Thanks Jack,

The quality Gaboon ply has been a very big help on this one and has made the job much easier.

I was looking and our lakers, side by side last night, and Robins, somehow, looked sleeker than mine. I ran the tape over them and at the widest point, my boat is a full 40mm or about 1 1/2" wider than Robins :shock:

Hers measures 670mm which is as the specs state and mine is 710mm. This is a mystery to me becuse I used the same temp hull frames on both boats. Clearly, I have done something wrong on my Laker but I just can't work out what it is.

Oh yeah, , Robin's boat is considerably lighter than mine was at this stage of build The way things are going, I think it will be ideal for her.
Regards,
Mick

JEMWATERCRAFT Swampgirl; Wadefish;Touring Pirogue;South Wind; P5 ;
Laker X 2, Sasquatch 16.5 T-V 15 Okwata 15:
Cobia 15 (under construction)
Top
jem
Site Admin
Posts: 4916
Joined: Fri Jun 18, 2004 8:14 pm
Type of boat I like: Wooden
Location: Greensboro, NC
Contact:
Contact jem

Post by jem »

Mick what the heck did you do? :lol:
-Matt. Designer.
Top
Oldsparkey
Design Reviewer
Posts: 1272
Joined: Sat Jun 19, 2004 11:08 am
Type of boat I like: Wood boats .
Location: Somewhere around Central Florida
Contact:
Contact Oldsparkey

Post by Oldsparkey »

The oldsparkey influence got to him while working on Robins boat , it just sneaks up on someone and before they know it .... it is to late.

A great but lighter and skinner boat. ( Might of been the beer he had before working on it) :roll: :lol: :lol:

As you said ..... Hers measures 670mm which is as the specs state and mine is 710mm. This is a mystery to me becuse I used the same temp hull frames on both boats. Clearly, I have done something wrong on my Laker but I just can't work out what it is.

Either way it has to be my fault. Besides I ate those 40 M @ M's before you took the measurement , even the green ones , my favorite ones. Yum , Yum , They are good and that is why you were short the 40 M @ M's between the 670 and the 710 mm's :P

Chuck.
PS. Blame me Mick , I can take the heat.
Remember:
Amateurs built the Ark...... Professionals built the Titanic
Visit some fine paddlers at The Southern Paddler
Top
tx river rat
Posts: 989
Joined: Wed Feb 21, 2007 10:48 pm
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: Tx

Post by tx river rat »

Mick
Robin going to be out running you
Ron
Top
hairymick
Design Reviewer
Posts: 1965
Joined: Wed Jan 04, 2006 8:54 am
Type of boat I like: <-- Please read instructions to the left and delete this text. Then, tell us what type boat you like! :-)
Location: Queensland, Australia
Contact:
Contact hairymick

Post by hairymick »

Matt Wrote
Mick what the heck did you do?
I am not real sure mate. I had some trouble getting my warped,cheap ply to conform to shape. The only thing I can think of is that the forces I applied in getting the deformities out in the ends caused the tops of the side panelks to bow out in the middle.

In the end, the best I could do with my boat was to get the lines looking as fair as I could and stitch it up there.
